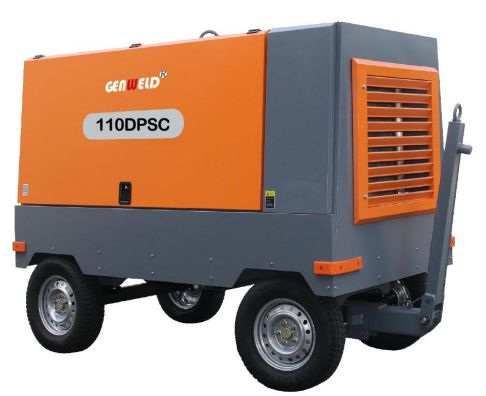

GENWELD 110DPSC Diesel Portable Screw Compressor with Yuchai 118KW Engine 12.5 m3/min FAD and 10 bar Rated Pressure

I. Core Performance Parameters

• Rated FAD (Free Air Delivery): Boasts a rated free air delivery of 12.5 m³/min, enabling efficient and continuous compressed air supply. It can support the simultaneous operation of multiple high-demand pneumatic tools (such as large jackhammers and air drills), fully meeting the air consumption needs of heavy-duty working conditions.
• Rated Pressure: Features a rated working pressure of 10 bar (approximately 145 PSI), which is higher than conventional low-pressure models. This makes it suitable for pneumatic equipment that requires high-pressure air input, ensuring stable power output and reliable tool performance.
• Power System: Comes standard with an engine complying with China National Emission Standard IV, powered by a Yuchai-brand engine with a rated power of 118 KW. The engine combines strong power, excellent fuel efficiency, and environmental friendliness, not only adapting to strict domestic emission regulations but also providing sustained power support for long-hour operations.
• Endurance Capacity: Equipped with a 135 L diesel tank. With the engine’s fuel-saving design, it can significantly extend the equipment’s continuous operation time, minimizing work interruptions caused by frequent refueling and improving on-site work efficiency.

II. Structure and Dimension Configuration

• Mobility Mode: Adopts a 4-wheel design, which enhances the equipment’s load-bearing capacity and stability during movement compared to 2-wheel models. When matched with a suitable traction device (to be selected based on actual application scenarios), it can be flexibly transferred across large construction sites or between different work areas, ensuring strong adaptability to complex on-site terrain.
• Overall Weight: Has a net weight of 2,350 kg. The reasonable weight distribution ensures stable operation of the compressor even under high-load conditions, while also being compatible with most medium-duty transport vehicles for long-distance transportation.
• Overall Dimensions: Measures 3,000 × 1,610 × 2,350 mm (L×W×H). The optimized size design balances air supply performance and spatial adaptability—while providing large air output, it still fits into most construction site storage areas and transportation compartments, avoiding difficulties in deployment due to excessive size.
• Air End: Utilizes a single-stage compression structure for the air compressor host. This structure simplifies the internal mechanism, reduces the complexity of maintenance, lowers daily upkeep costs, and can stably output high-quality compressed air that meets working requirements, achieving a good balance between operational reliability and maintenance convenience.

​
