제품 설명

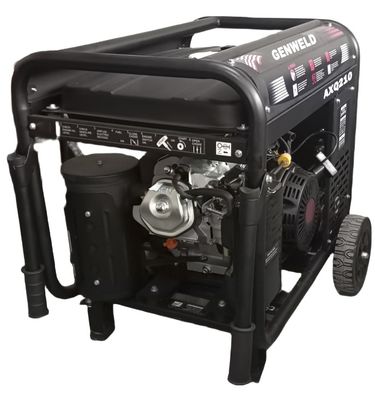

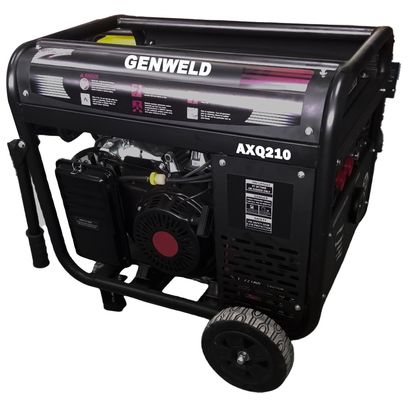

| model | AXQ-210A | |
| arc welder | Welding method | Hand arc welding/argon arc welding |
| No-load voltage(V)70-75 | ||
| working voltage(V) | 22-30 | |
| Maximum welding current(A)210 | ||
| Current regulation range | 50-210 | |
| (A) | ||
| The load duration rate is 60% | ||
| Welding rod range(φ) | 1.6-4.0 | |
| accessory power supply |
Output voltage 120V/220V/240V | |
| output | 16A/9A/8A | |
| Output power DC2kw/AC3kw/AC5kw | ||
| operative mode | continuation | |
| engine | Power model 190F | |
| Fuel volume(L) | 25 | |
| Oil volume(L)1.1 | ||
| Fuel model | Lead-free gasoline for vehicles | |
| The lubricating oil model is CD grade or S A E10W30 | ||
| Engine power(HP) | 15 | |
| Displacement(CC)420 | ||
| Ignition method | CDI | |
| The start mode is electric | ||
| pack | Net/gross weight(kg) | 80.5/83 |
| Packagingsize(mm) | 720x540x570 | |
